Wanted for Parts a Garmont (Megaride or?) boot, any size

  • Eric Lindahl
  • [ejlindahl]
  • Eric Lindahl's Avatar
  • Offline
  • Junior Member
  • Junior Member
More
12 Feb 2021 17:44 - 12 Feb 2021 17:47 #234690 by Eric Lindahl

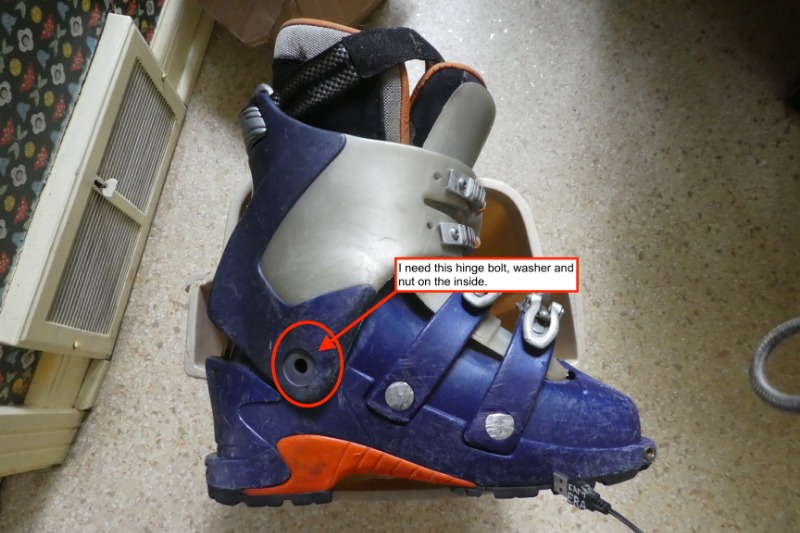

Anyone have an old Megaride or other similar Garmont boot kicking around.  I need the cuff pivot bolt assembly.    Any size.  See picture.


Attachments:
Last edit: 12 Feb 2021 17:47 by Eric Lindahl.

Please Log in or Create an account to join the conversation.

  • stovepipe
  • [stovepipe]
  • stovepipe's Avatar
  • Offline
  • New Member
  • New Member
More
18 Feb 2021 05:08 #234714 by stovepipe
That's a pretty easy repair using regular hardware store parts. I fixed my old Garmont Synrgy using a T-nut, washer, and flathead allen bolt, similar to this technique . The T-nut has teeth, that grip the plastic inside so it doesn't loosen. I just dremeled a little off the teeth so it didn't go too deep into the plastic.

Please Log in or Create an account to join the conversation.

  • Trolleyman
  • [Inspector]
  • Trolleyman's Avatar
  • Offline
  • New Member
  • New Member
More
22 Feb 2021 08:29 #234740 by Trolleyman

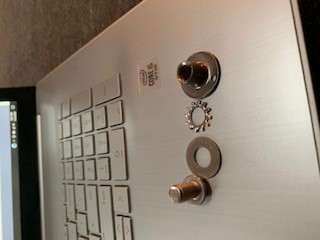

I had the exact problem years ago, Lowes should have a connector for this but you may need to shorten it slightly since the post will be be to long.
Attachments:

Please Log in or Create an account to join the conversation.

  • Eric Lindahl
  • [ejlindahl]
  • Eric Lindahl's Avatar
  • Offline
  • Junior Member
  • Junior Member
More
22 Feb 2021 09:01 #234741 by Eric Lindahl
Thanks guys.  Being a life long DIYer I came up with the same idea before I even posted.  After a few days with no offers I went to that plan where I realized my broken piece was a standard boot cuff rivet, not the cant mechnism so no need for a donor boot.  The fix you and Wildsnow outlined was a no brainer with stuff I had in my shop.  I'm back in business and already have a day on them with no problem.

A couple things I'll add is that I put a drop of locktite on the panhead screw threads so it doesn't back out. I also filed off most but not all of the teeth on the Tee nut.  I then put a longer bolt into the nut and heated it slightly with a torch, enough to melt the stubby teeth into the plastic of the shell, but careful not to melt any of the shell plastic or hinge hole.  It worked fine.

I'll probably make up a second set for the other boot and stash it in my repair kit.  I might grind off the T-nut teeth completely (you can buy them this way too) and include a few lock washers.
